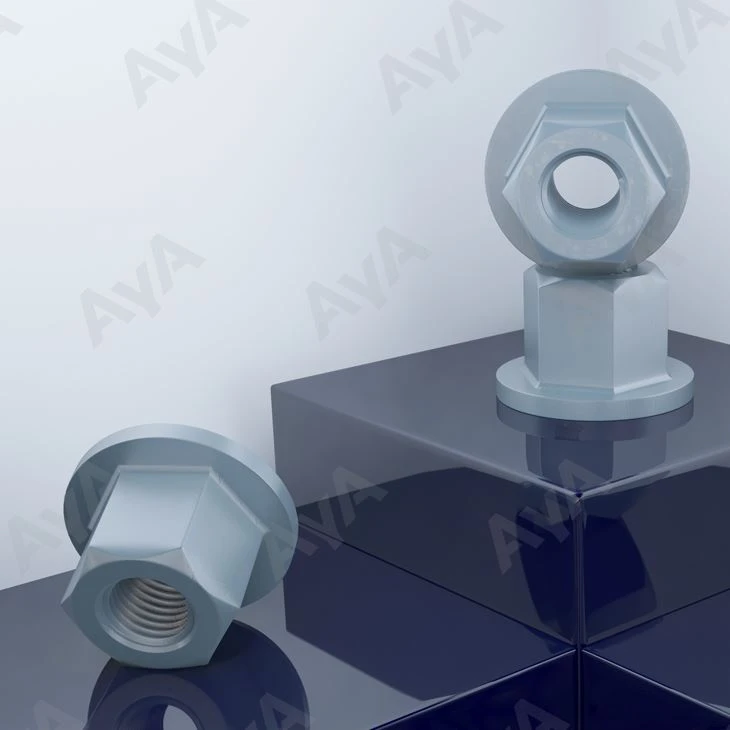

Hexagonal nut cum torquem
Latin: Laudate (VI) CCCXXXI
Thread Type: Crassum Thread
Commodity: Hexagonal nut cum torquem
Etiam nominatur: Hex Flange nucis
Material: Carbon Steel
Property Class: 3.6 ~ 12.9
Diametrum M6, M8, M10, M12, M16, M20, M24, M27, M30, M36, M42, M48
Height: 1.5 D
Finish: Plain/ Black/ Zinc Plated/ Thick-Film Passivated( ZSML)/ Zinc Flake, Silver( ZFSHL)/ Hot Dipped Galvanized/ Organic/ Geomet/ Dacromet/ Phosphating/ Cadmium Electroplate/ Nickel Plated
Drive Type: Hex
MOQ: 1000kgs
Duc Tempus: XXX ad LX diebus
Product Online
Aya fasteners (Hebei) Co., Ltd est unus ex maxime periti Manufacturers et Suppliers HeXagonal nut cum torquem in Sinis. Placere sentire liberum emere alta qualitas HEXAGONAL nut cum torquem in Sina hic de officina. Nam pretium consultatio, contact us.
Ut a global elit de customized pavere solutions, Aya scriptor Service processum est etiam ut proxima ad customers ut Aya scriptor products. Ex describendo necessitates sequantur, {{I}} Sursum Services, Aya et prompte et parce non conatu ad auxilium customers solvere aliquo assentientibus problems, quae surge, ut eliminate de customers.
Product Description
| Product Name | Hexagonal nut cum torquem |
| Et nominatur | Hex Lenge nucis |
| Materia | Carbon Steel |
| Vexillum | Laudate (VI) CCCXXXI |
| Proprietas | 3.6~12.9 |
| Diameter | M6,M8,M10,M12,M16,M20,M24,M27,M30,M36,M42,M48 |
Altitudo | 1.5 D |
| Consumo | Patet, nigrum cadmiae, cadmiae patella, calidum intinxit galvanized, oxidatio, Dacromet, phosphaating, Cadmium electroplate, nickel patella |
| TRIGUOR | Externum hex |
| Filum genus | Crassum filum |

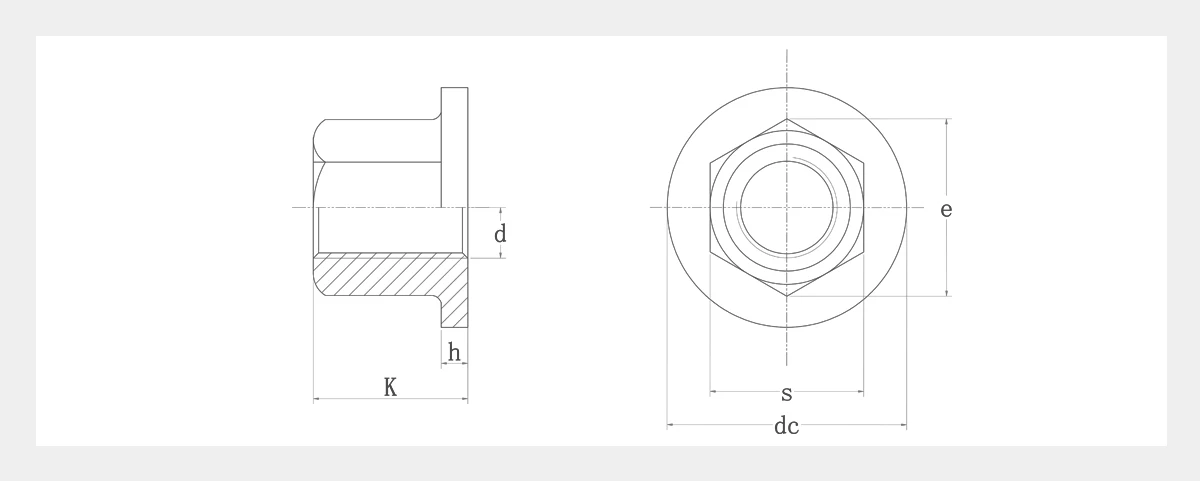

Dimensiones mensam
| Screw filum d | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M27 | M30 | M36 | M42 | M48 | ||
| P | Pice | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3 | 3.5 | 4 | 4.5 | 5 | |
| h | Nominis magnitudine (JS14) | 3 | 3.5 | 4 | 4 | 5 | 6 | 6 | 7 | 8 | 10 | 12 | 14 | |
| max | 3.125 | 3.65 | 4.15 | 4.15 | 5.15 | 6.15 | 6.15 | 7.18 | 8.18 | 10.18 | 12.215 | 14.215 | ||
| min | 2.875 | 3.35 | 3.85 | 3.85 | 4.85 | 5.85 | 5.85 | 6.82 | 7.82 | 9.82 | 11.785 | 13.785 | ||
| dc | Max {= nominis magnitudine (H13) | 14 | 18 | 22 | 25 | 31 | 37 | 45 | 50 | 58 | 68 | 80 | 92 | |
| min | 13.73 | 17.73 | 21.67 | 24.67 | 30.61 | 36.61 | 44.61 | 49.61 | 57.54 | 67.54 | 79.54 | 91.46 | ||
| k | Nominal Size (JS15) | 9 | 12 | 15 | 18 | 24 | 30 | 36 | 40 | 45 | 54 | 63 | 72 | |
| max | 9.29 | 12.35 | 15.35 | 18.35 | 24.42 | 30.42 | 36.5 | 40.5 | 45.5 | 54.6 | 63.6 | 72.6 | ||
| min | 8.71 | 11.65 | 14.65 | 17.65 | 23.58 | 29.58 | 35.5 | 39.5 | 44.5 | 53.4 | 62.4 | 71.4 | ||
| s | Max=nominis magnitudine | 10 | 13 | 16 | 18 | 24 | 30 | 36 | 41 | 46 | 55 | 65 | 75 | |
| min | 9.78 | 12.73 | 15.73 | 17.73 | 23.67 | 29.67 | 35.38 | 40.38 | 45.38 | 54.26 | 64.26 | 74.26 | ||
| e | min | 11.05 | 14.38 | 17.77 | 20.03 | 26.75 | 33.53 | 39.98 | 45.63 | 51.28 | 61.31 | 72.61 | 83.91 | |
| ①, nuces de magnitudinum M6 ad M36 fuerit factum ex ferro de proprietate genus X (commendatur) vel VIII ut certa in din en 20898-2. Nuces de magnitudinum M42 et M48 erit a duritia ({{II}}) HV XXX (commendatur) vel ({{{}}) HV XXX. |

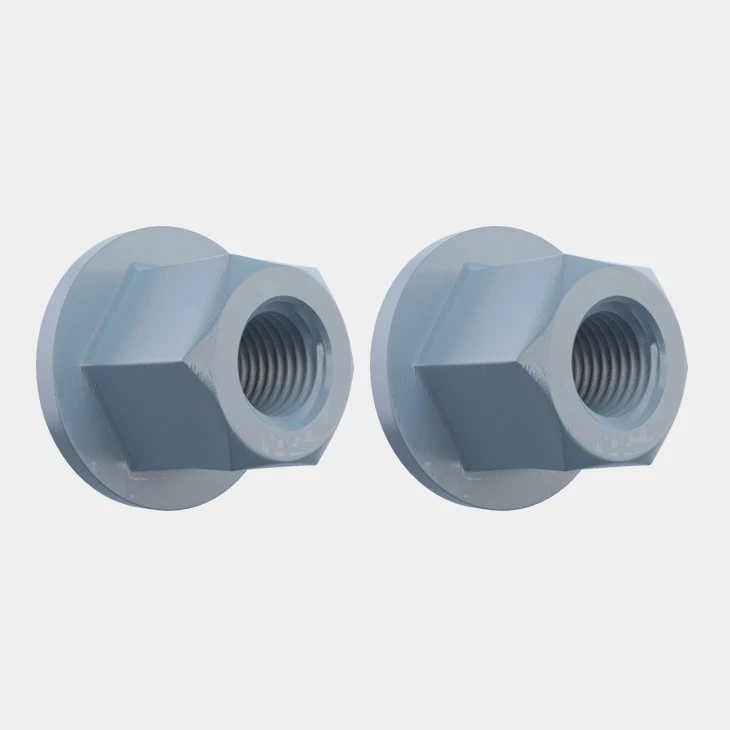

Product Details
Productum commoda
HEXAGONAL ADVERSUS nut cum torquem
I. De washer et nut et flange nucis integrated, et sunt anti {{I}} labuntur dentes infra, quod crescit superficies contactus inter nut et workpiece. Comparari cum compositum Ordinarius nut et washer, quod est firmior et habet maiorem tensionem.
II. LABGE facies nuc flante faciem sulcus, non tantum crescit in contactum area sed etiam prohibet effectum solveret.
III. Hexagonal nuces cum torquem sunt late usus. Generaliter, multi Cochleas et Bolts postulo ut matched cum LABIUM nucis.
IV. Aya est penitus involved in fastener industria cum una {{I}} animo et dedicated habitus, devotionem ad providing nostra customers cum magis industria, {{II}} specifica, professional, de mensuris, et precised in solutions, et precise solutions.
V. Aya fasteners constantly focuses in singula et attente serves nostri customers.
Qualis inspectionem
Packaging & continens loading
Usus missionibus
Quid Elige Aya?
Aya praebet exclusive officia ad 1000+ membra ex toto orbe terrarum anni, cum a unique catena servitio solution system, vos tantum postulo ut click in ianua {I}} {{{}}} ianuam.
